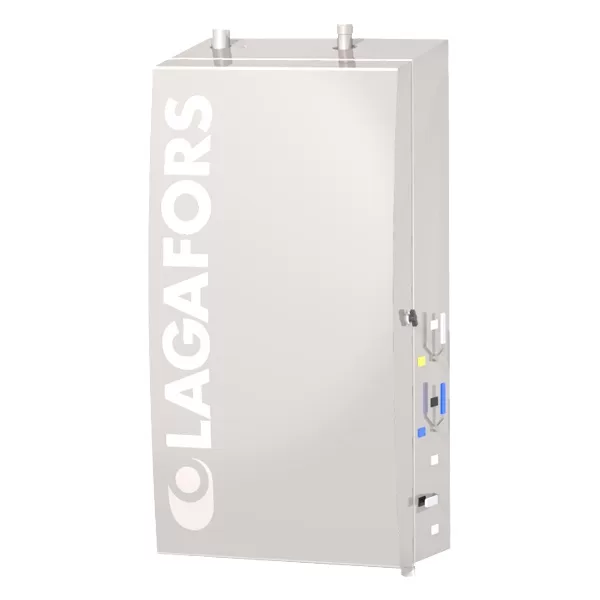

Central station (master) LWP 20 CB

Code: TH000030 Vendor: Lagafors

The Lagafors® LWP 20 CB low pressure central station (Combi Booster) is designed for washing with increased water pressure and for washing with chemicals and disinfectants. The unit is of hygienic design, suited to installation in production areas, and can be built into a system with Lagafors® satellite washing stations. The Lagafors® LWP is particularly suited to washing needs in the food industry — bakeries, breweries, fish and meat product production and other places where a high level of hygiene is required.

Price on request

We will reply within one business day.

Send request Or call: +37061021738

Description

Features:

Working pressure 20-25 bar.
Supplied with a hygienic stainless steel body
The unit is wall mounted

Technical information, Lagafors^® low pressure central station LWP 20 CB
Model	LWP 2030 CB	LWP 2090 CB*	LWP 20150 CB*
Outlet water pressure	19 bar + inlet pressure (max 25 bar)
Water consumption	0-30 l/min	0-90 l/min	0-150 l/min
Flow capacity, max	50 l/min	100 l/min	165 l/min
Capacity (30 l per user at once)	1-2 users	3 users	5 users
Ambient temperature	5-25 ºC
Rated for humidity	95%
Connections (internal thread)
Water inlet	ISO-G 1 1/4”
Outlet water flow	70 l/min	150 l/min	210 l/min
Supply water pressure	3-6 bar
Water temperature, max	60 ºC
Water outlet	ISO-G 1”
Air inlet connection	ISO-G 1/4”
Air pressure	6-8 bar
Air flow	150 l/min
Electrical
Voltage	3 x 400 V+N+PE / 50 Hz (other specifications to order)
Current	4.5 A	9 A	14.6 A
Power	2.2 kW	4 kW	7.5 kW
Dimensions
Dimensions width x depth x height	640 x 380 x 1290 mm
Approximate weight	125 kg	145 kg	175 kg
