Satellite station VMS II DC-D

Satellite station VMS II DC-D

Code: TH000031 Vendor: Lagafors

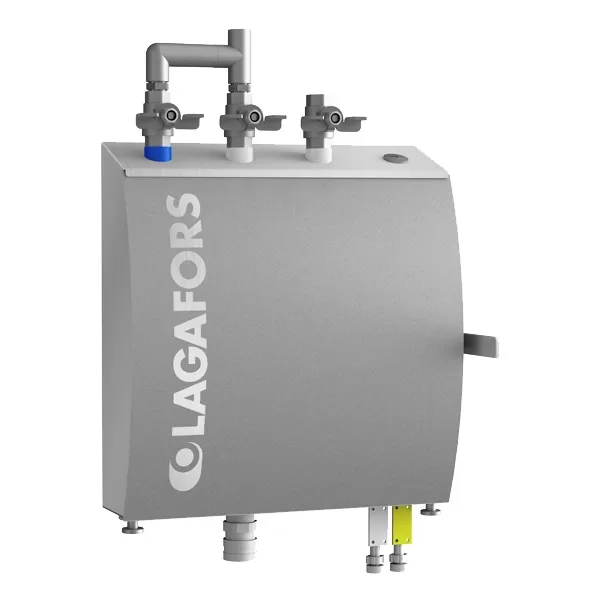

The Lagafors® VMS II-DC satellite station is a further evolution of the earlier VMS-DC station. It is smaller and adapted for easier servicing. The unit is of hygienic stainless steel design. The satellite station is intended for washing with water, chemicals and disinfectant solutions. The VMS II-DC unit is mounted on the wall in production areas or kitchens. The station suits water pressures from 10 to 160 bar (145-2,320 psi). One feature of the satellite station is the clearly marked suction hoses for chemical and disinfectant solutions. The operator can easily switch between washing functions. The chemicals are drawn from containers hung beside the satellite station. The VMS II-DC station needs a compressed air connection. For higher output we offer the VMS II-DCT station, which can work with three different chemicals at once (alkali, acid and disinfectant, for example).

Price on request

We will reply within one business day.

Send request Or call: +37061021738

Description

The VMS II-DC station consists of:

  • Ball valves for water, chemicals and air.
  • Suction hoses for chemicals and disinfectant
  • A stainless steel, acid-resistant injector (for mixing chemical and disinfectant solutions)
  • An opening stainless steel cover for easy servicing



Technical information, Lagafors® satellite stations VMS II-DC / S / D / T



Services supplied

10 - 25 bar

35 - 45 bar

60 - 160 bar

Water

Connection

ISO-G 3/8” internal thread



Pressure

10-25 bar

35-45 bar

60-160 bar



Flow, max

35 l/min

30 l/min

25 l/min

Air

Connection

ISO-G 3/8” internal thread



Air pressure

6-8 bar

Flow, min

100 l/min



Water / chemicals / disinfectants

Quick couplings



Dimensions width x depth x height



320 x 110 x 340 mm



The data given may change and the manufacturer reserves the right to alter specifications and design without separate notice

The equipment is available in 3 versions: S = one chemical, D = two chemicals (recommended as standard), T = three chemicals
