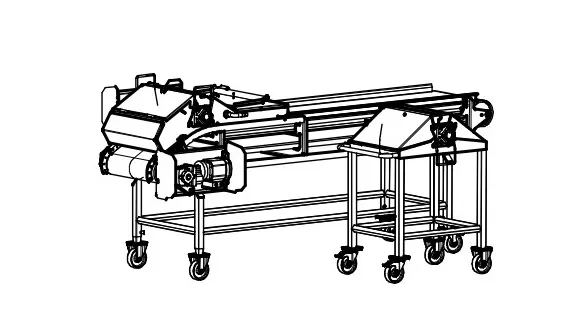

Herring fillet cutter Cabinplant

Code: TH000050 Vendor: Cabinplant

The unit is designed for cutting herring fillets (or fish of a similar structure) into pieces. This is the new, improved 2016 model.

Price on request

We will reply within one business day.

Send request Or call: +37061021738

Description

Product: herring fillets
Capacity: up to 400 kg/h

Dimensions: length 3,000 mm
Width (belt): 300 mm
Standard factory setting for 25 mm pieces – cutting knife width 250 mm
Construction: 304L stainless steel with a plastic belt.

A guard is fitted to the knife cover which stops the rotating knife when the cover is lifted.
Intralox plastic belt
SEW motor

How it works

The operator lays the herring fillets diagonally onto the conveyor. The conveyor runs at the same speed as the circular knives. As the conveyor turns, the fish fillet passes the rotating knives and drops into a container cut into pieces. The distance between the knife discs is adjusted by changing the plastic spacers.
The smallest possible piece is 5 mm.

Optional accessories:

Knife shaft with knives (at the spacing chosen)
Cabinplant product elevating conveyor
Cabinplant conveyor with an endless belt
Common electrical cabinet for Cabinplant machines
Cabinplant platform
Cabinplant trolley lifter

Technical data:

Dimensions (length x width x height): 3000x400x1450 mm
Output: up to 400 kg/h
Electrical: 400V/N/PE, 50/60 Hz
Power: 3.2 kW
